Haas TL-1

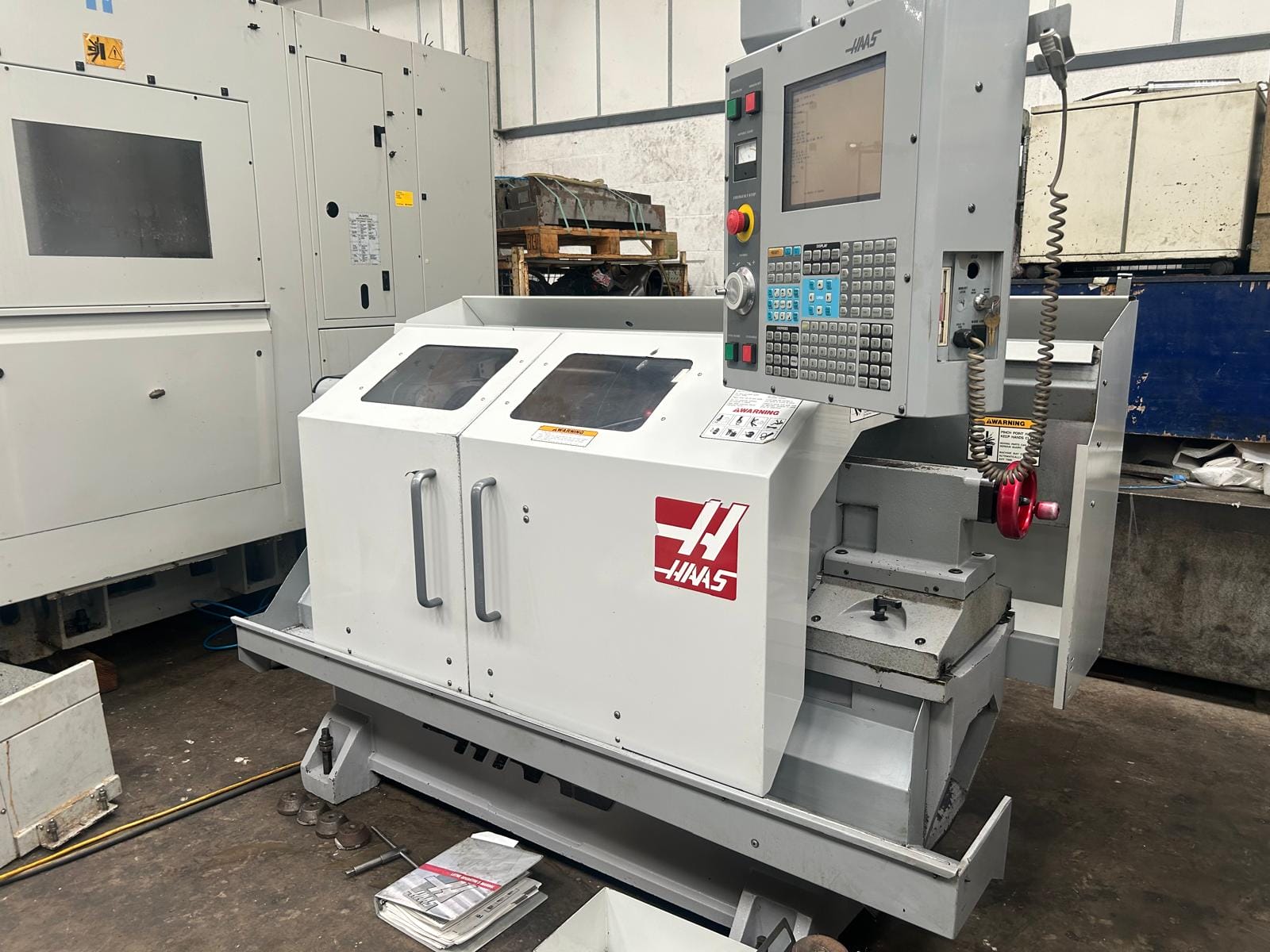

Haas CNC lathe with closed guarding system

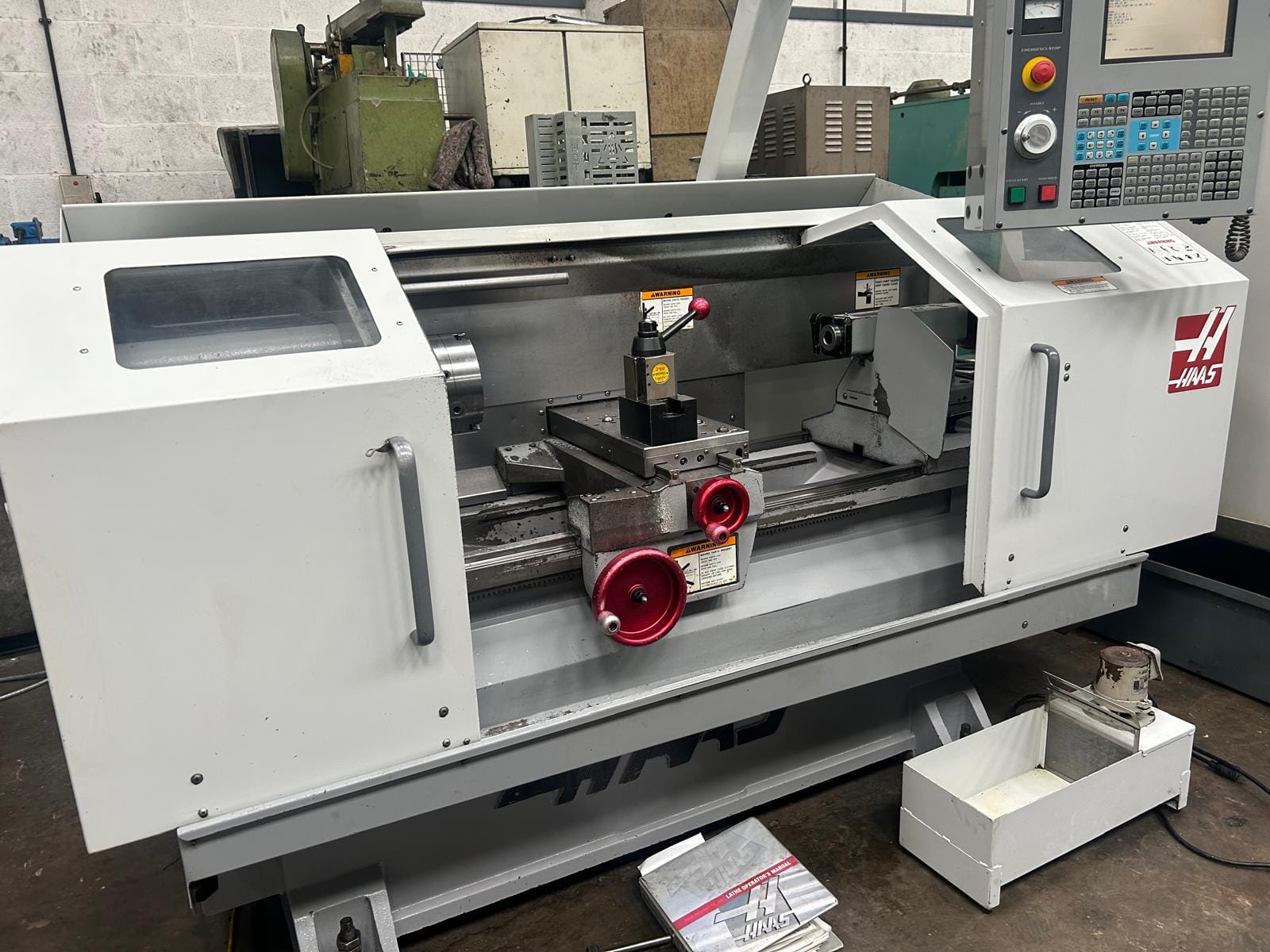

Haas CNC lathe with red handwheels and tool post

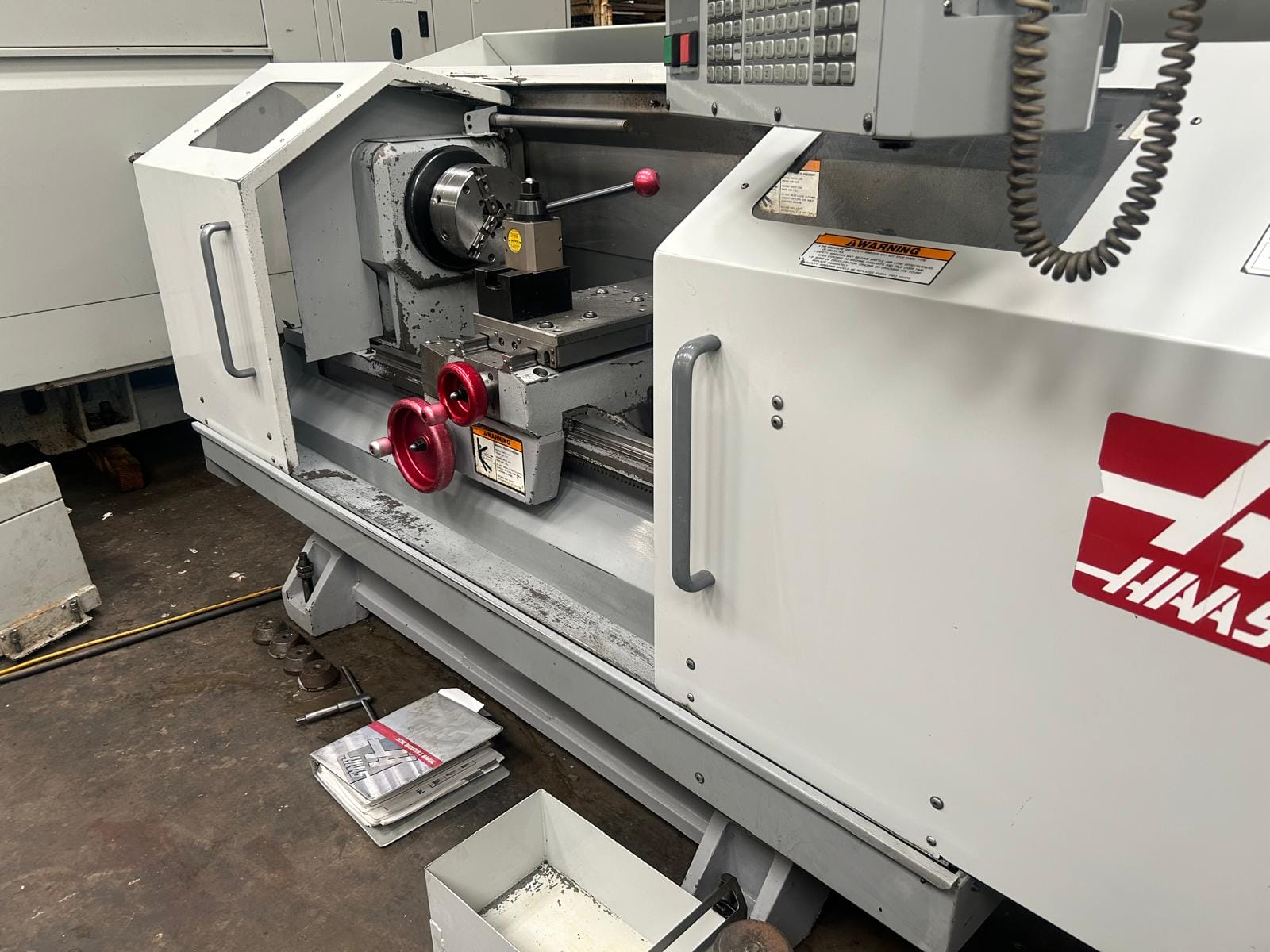

Haas CNC lathe with tool post and red handwheels

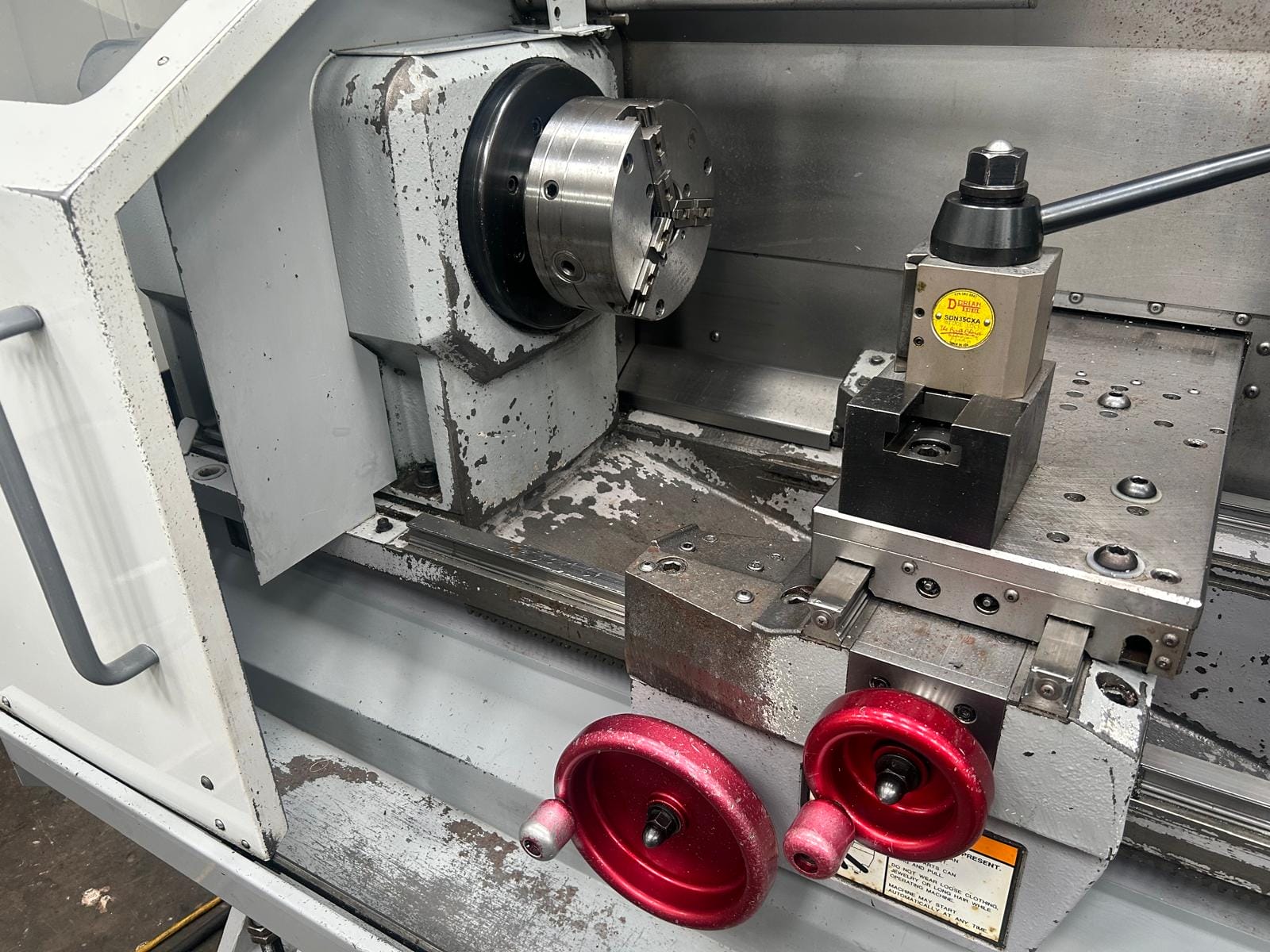

Haas CNC lathe with enclosure and tool setup

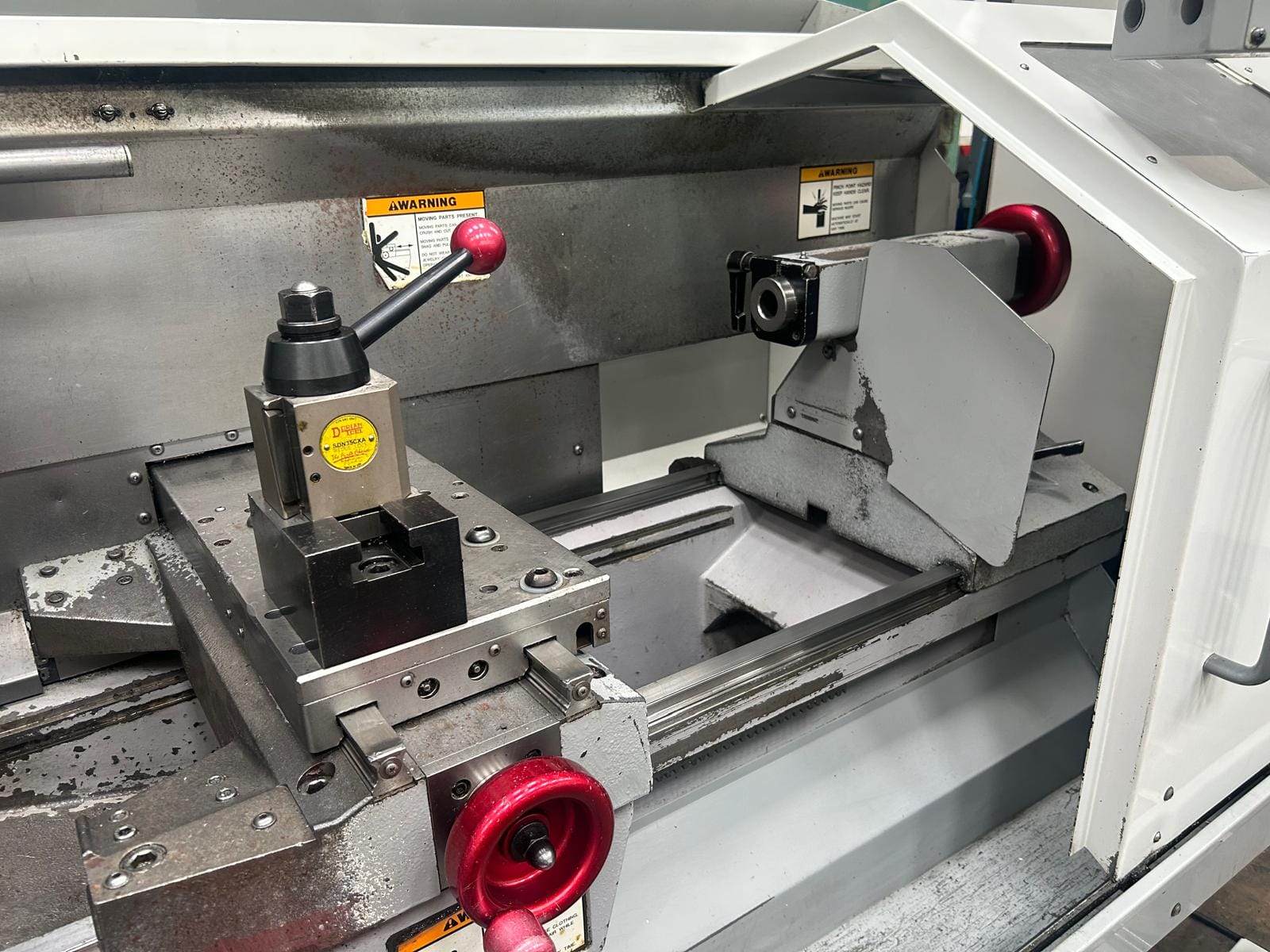

Haas CNC lathe tool post and tailstock view

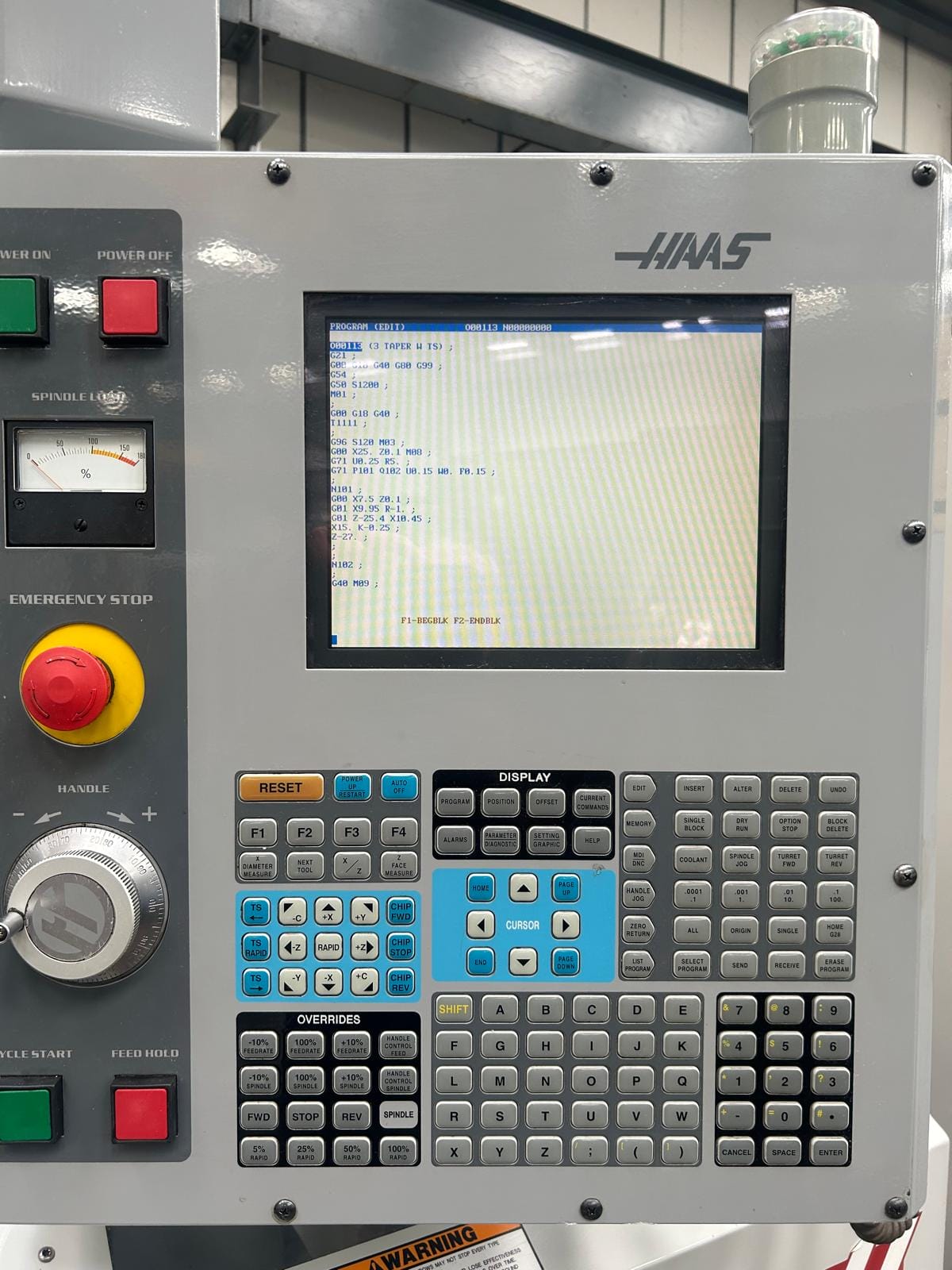

Haas CNC control panel with screen display

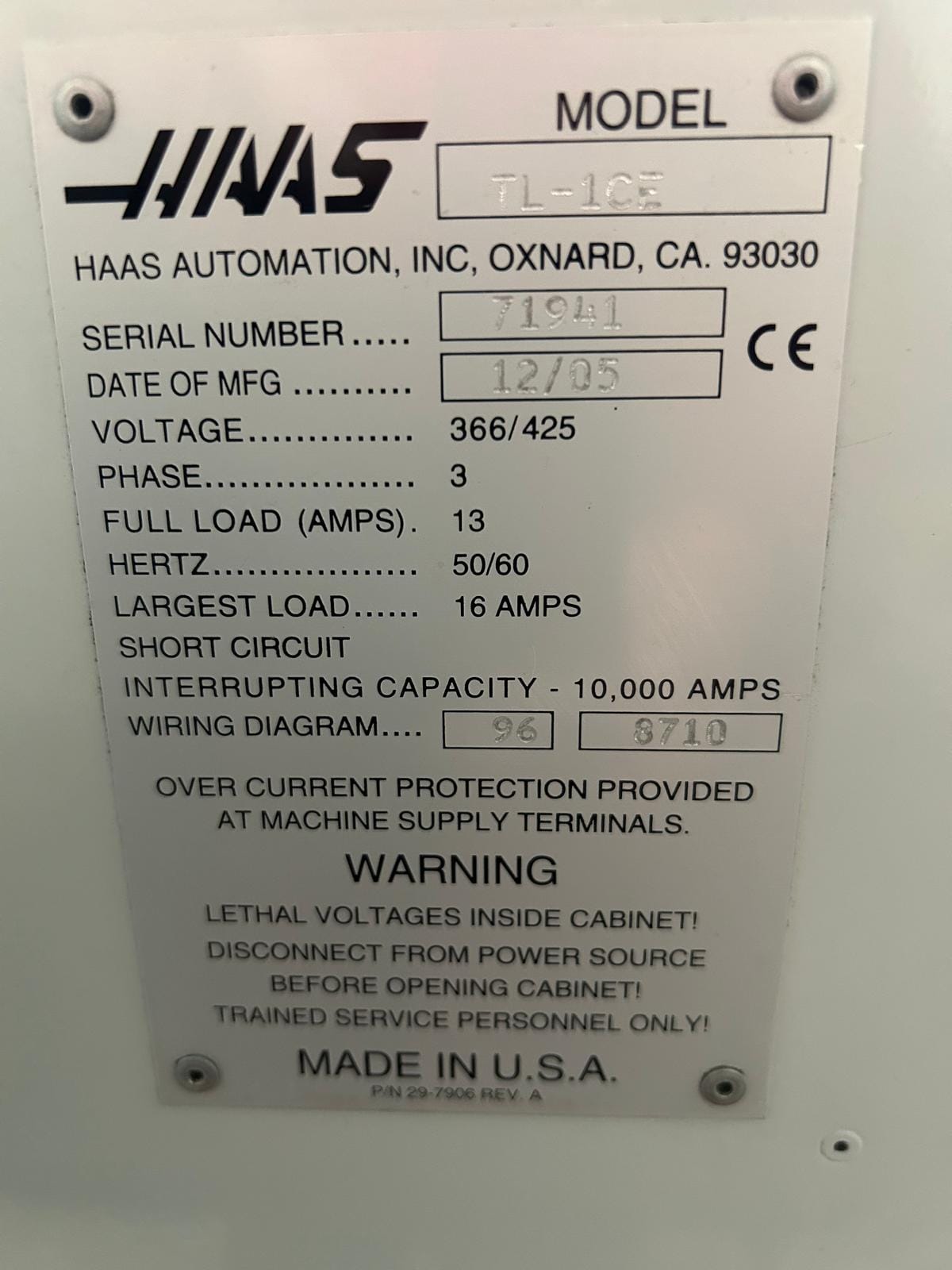

Haas TL-1CE machine specification plate

Haas TL-1

DESCRIPTION

Used Haas TL-1 2005 CNC lathe is in great condition. 3 Jaw Chuck, Tool holders & Manuals.

MACHINE INFORMATION

Manufacturer

Haas

Model

TL-1

Year

2005

Condition

(Used) Great

Serial Number

71941

Control

Haas Control

Accessories

3 Jaw Chuck, Tool holders & Manuals.

MACHINE SPECIFICATIONS

Control

Haas Control

Bar Capacity

58mm

Chuck Size

8″ 3 Jaw Chuck

Distance Between Centres

762mm

Max Cutting Diameter

406mm

Max Cutting Length

762mm

Spindle Speed

2,000rpm

Turret Positions

4 Station Manual Tool Post

Milling Speed

N/A

Swing

508mm

X Axis Travel

203mm

Y Axis Travel

N/A

Z Axis Travel

762mm

C Axis Travel

N/A
