XYZ RLX 355

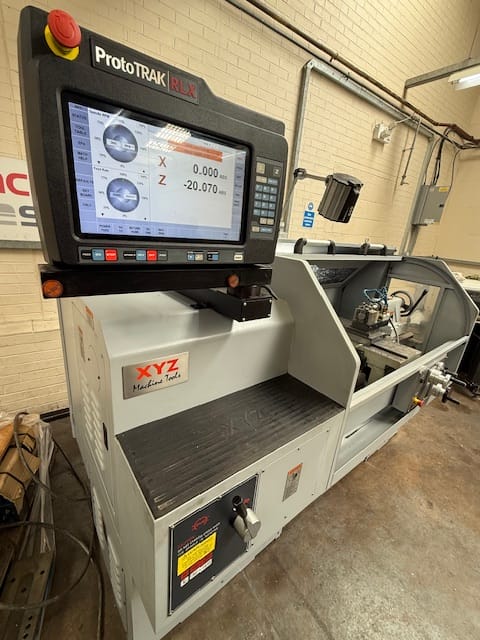

XYZ CNC lathe in workshop with control screen

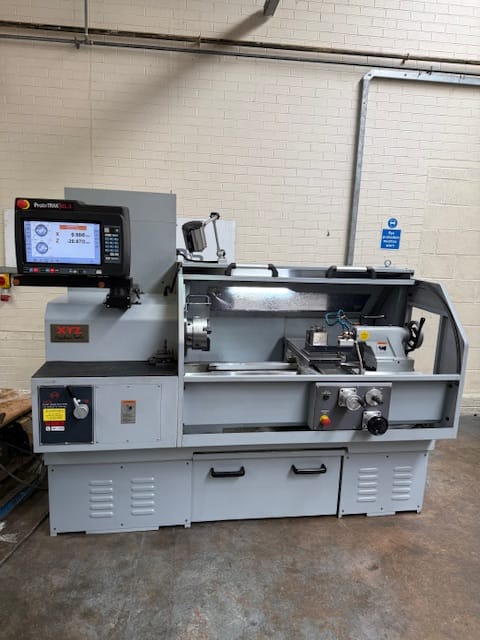

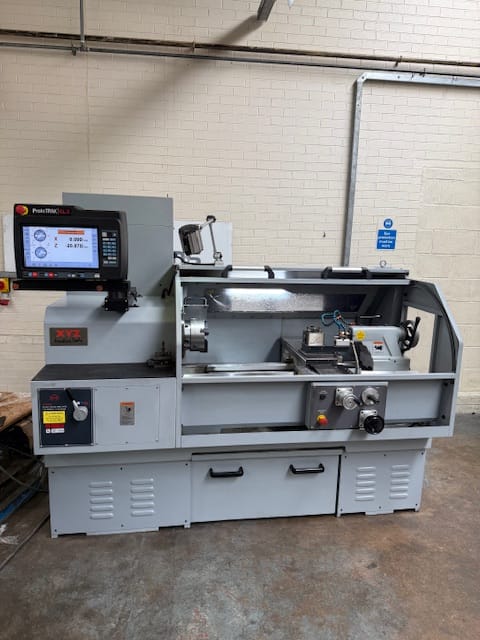

XYZ Machine Tools CNC lathe front view – Workshop CNC lathe featuring ProtoTRAK RLX control system and tool post for turning applications

XYZ CNC lathe with ProtoTRAK RLX control – Industrial lathe machine with digital control panel for high-accuracy metalworking and machining

XYZ lathe with ProtoTRAK RLX control system – CNC lathe machine by XYZ Machine Tools equipped with ProtoTRAK RLX interface for precision turning

XYZ Machine Tools lathe with ProtoTRAK RLX control panel – digital CNC interface for precision turning operations

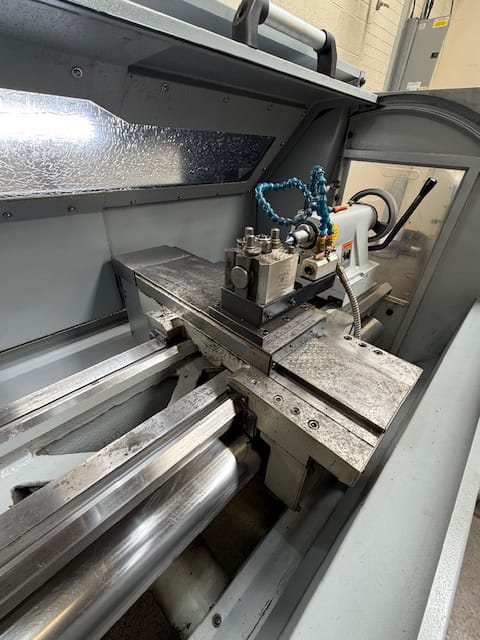

Precision metal lathe with chuck and tool post in workshop – industrial turning machine for machining cylindrical components

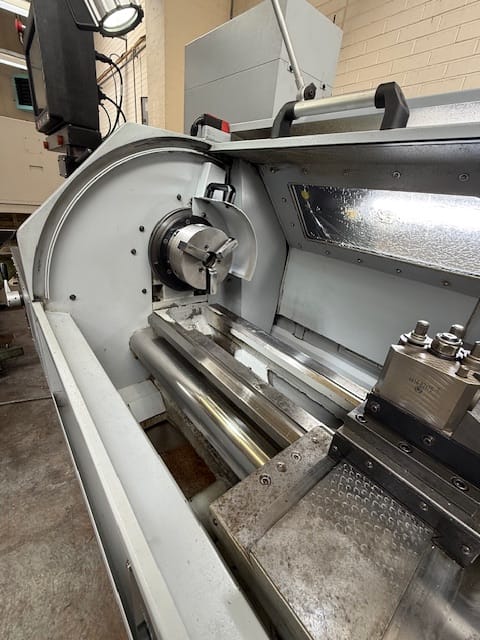

Inside view of XYZ CNC lathe chuck and tooling

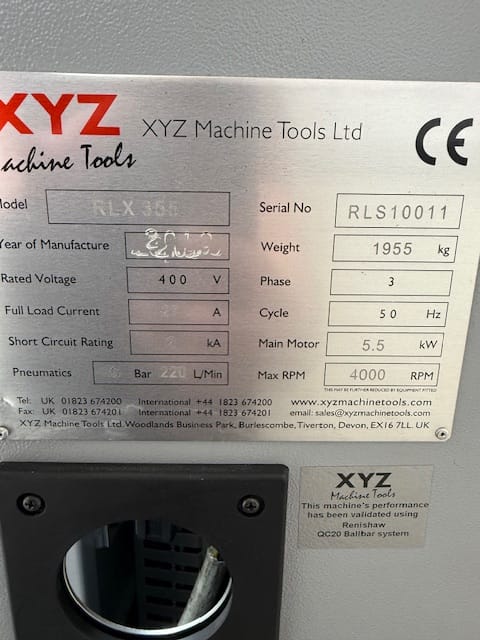

XYZ Machine Tools specification plate with model details

XYZ RLX 355

DESCRIPTION

Used XYZ RLX 355 CNC Lathe is in excellent condition. RLX ProtoTrak CNC Control, 12 tool holders, 5C Collet Chuck and Collets, 3 Jaw Chuck and Jaws. Front Screen Glass to be replaced soon.

MACHINE INFORMATION

Manufacturer

XYZ

Model

RLX 355

Year

2019

Condition

(Used) Excellent

Serial Number

RLS10011

Control

RLX ProtoTrak CNC Control

Accessories

12 tool holders, 5C Collet Chuck and Collets, 3 Jaw Chuck and Jaws.

MACHINE SPECIFICATIONS

Control

RLX PROTOTRAK TOUCHSCREEN CNC CONTROL

Bar Capacity

52mm

Chuck Size

8″ 3 Jaw Chuck

Distance Between Centres

1000mm

Max Cutting Diameter

225mm

Max Cutting Length

900mm

Spindle Speed

5–4000rpm

Turret Positions

4 Station Manual Tool Post

Milling Speed

N/A

Swing

360mm

X Axis Travel

185mm

Y Axis Travel

N/A

Z Axis Travel

900mm

C Axis Travel

N/A
