CMZ TX66Y2

CMZ TX66Y2

DESCRIPTION

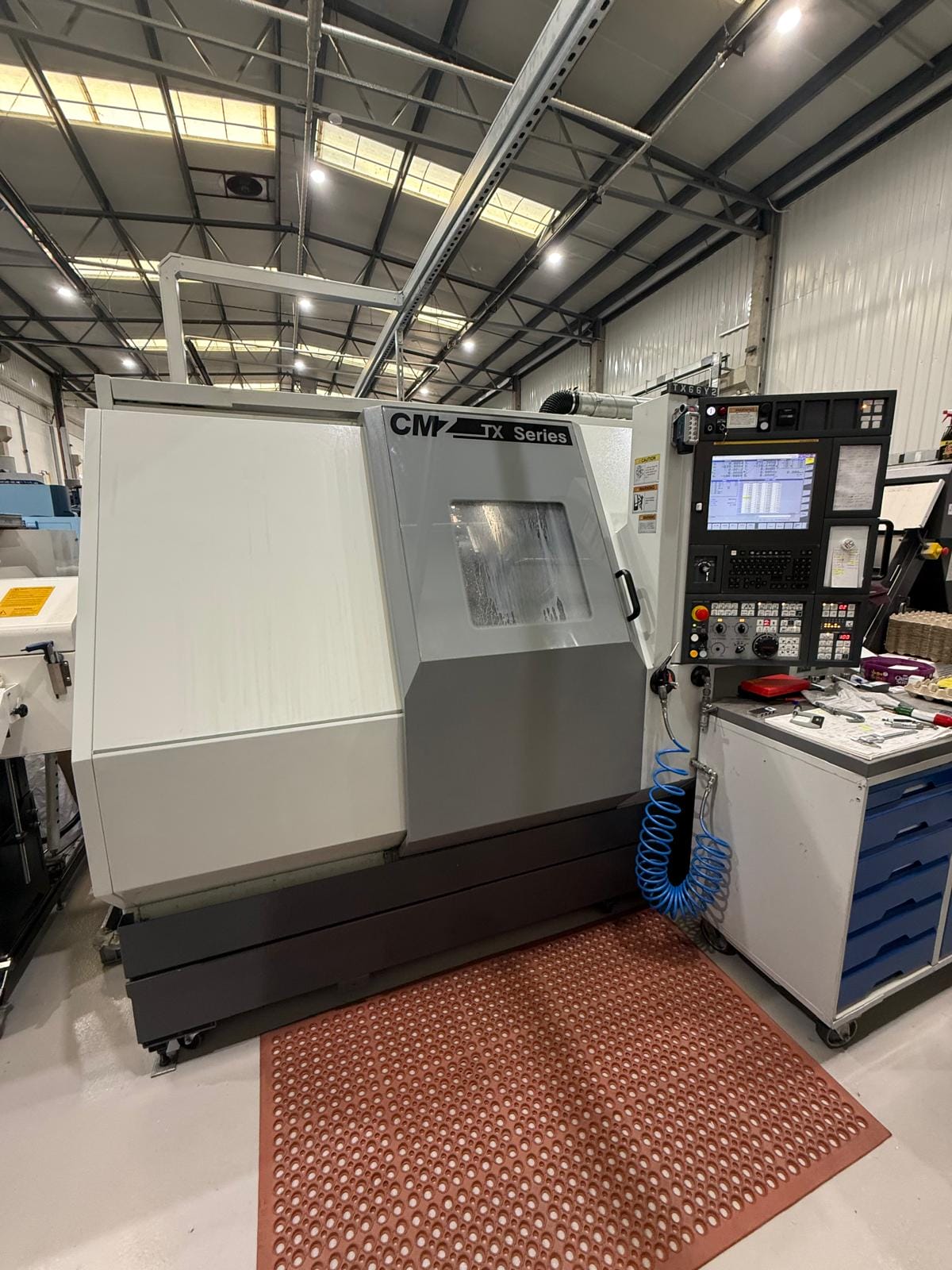

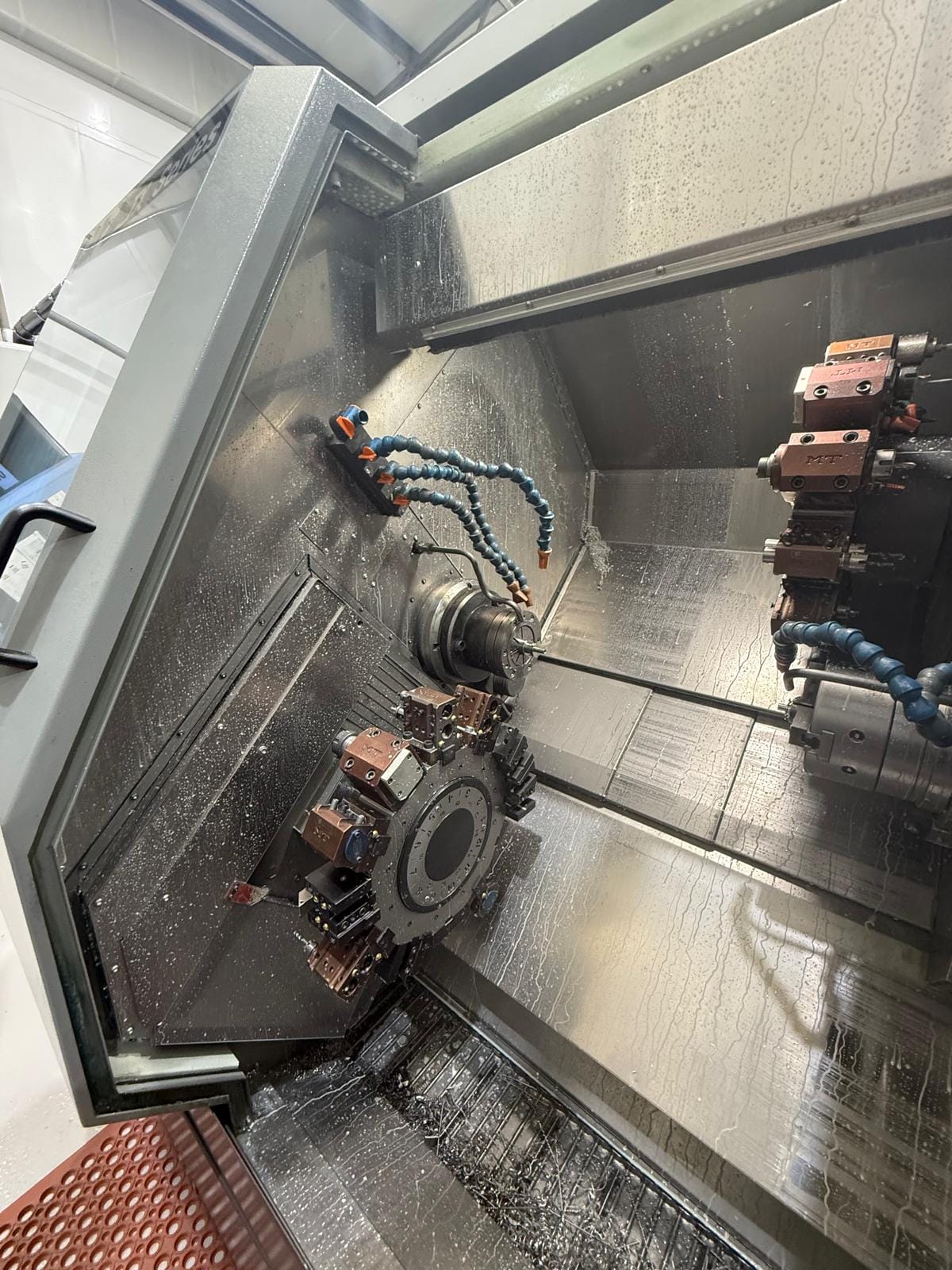

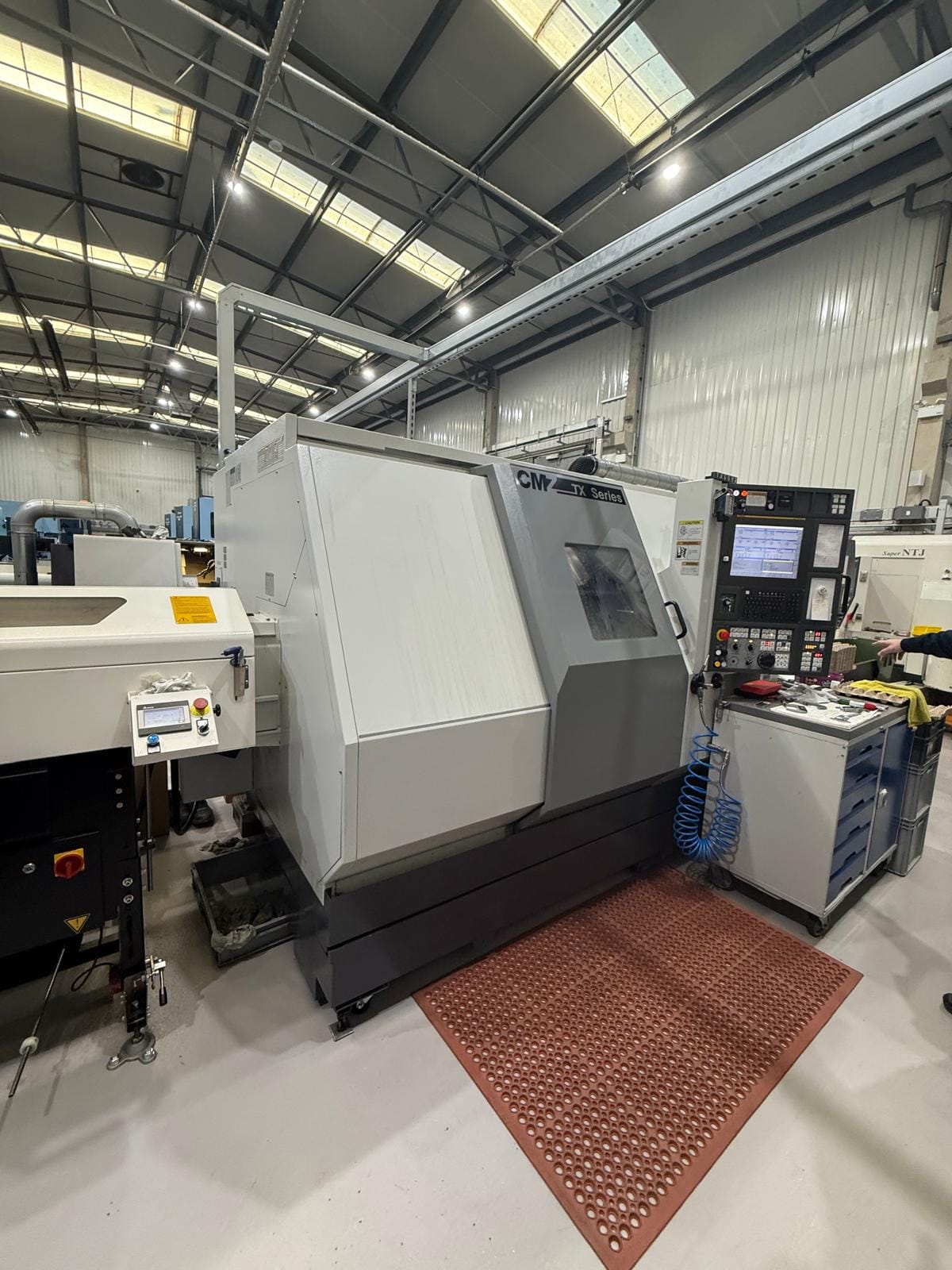

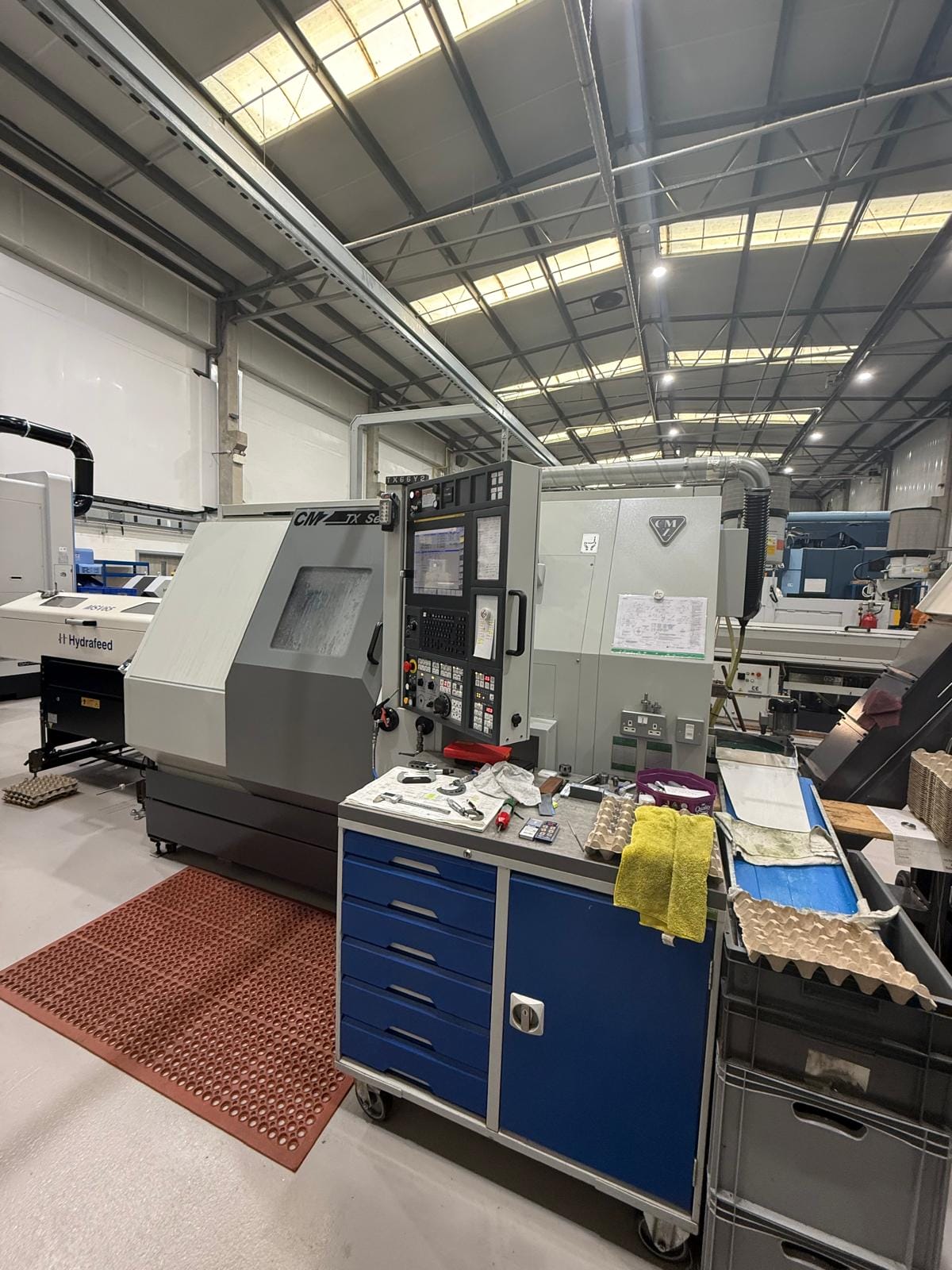

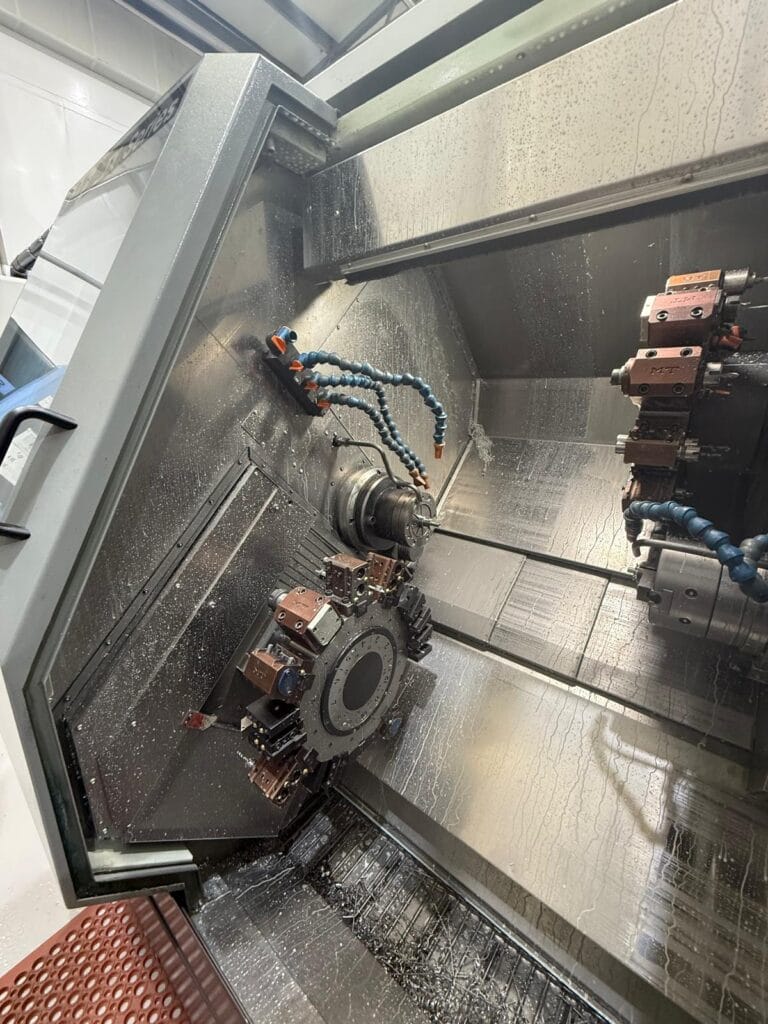

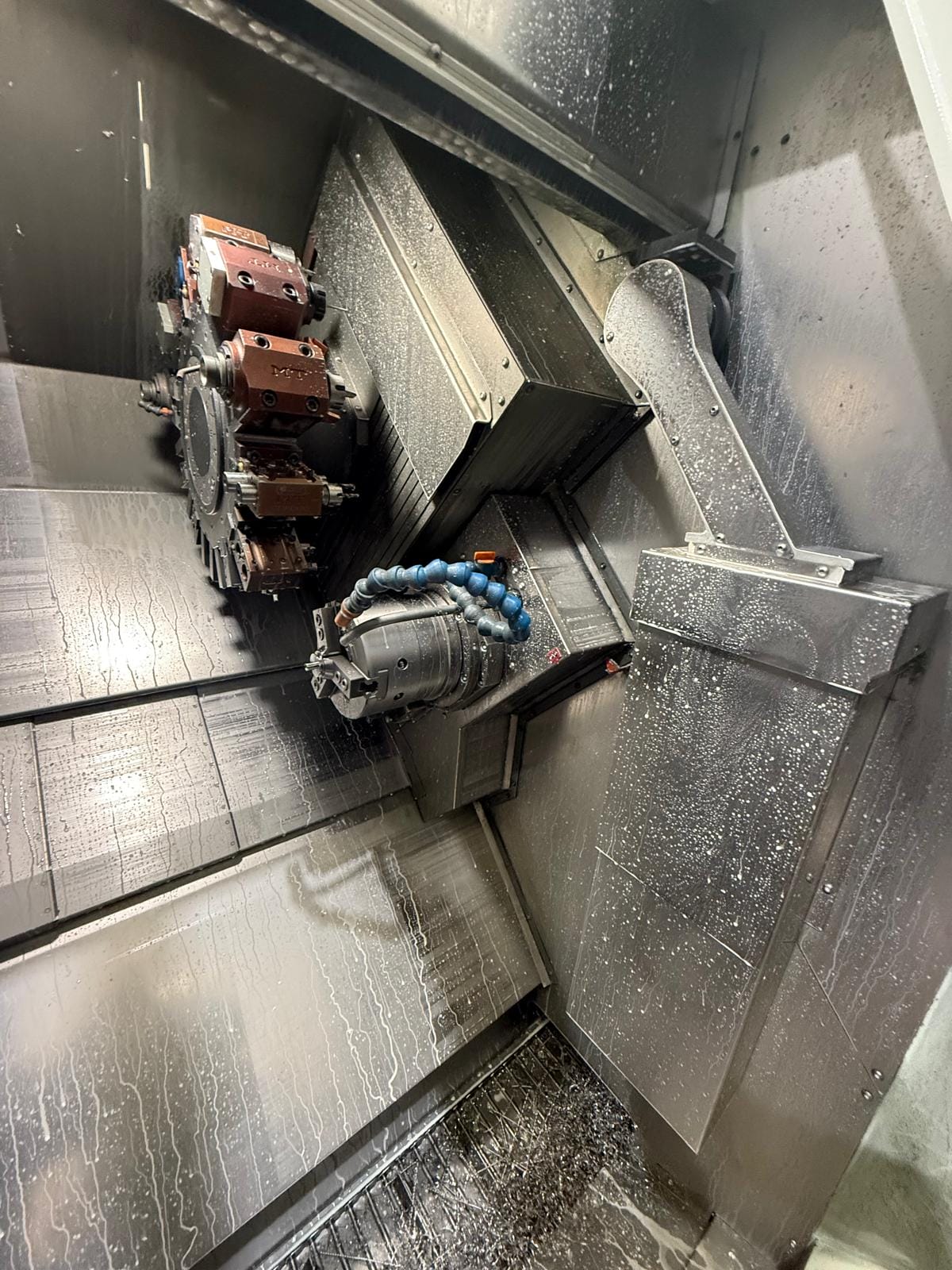

Used CMZ TX66Y2 Sub Spindle, Twin Turret, Y axis CNC Lathe in excellent condition. Fanuc Control, Live and static tool holders, Hydrafeed MSV65 Barfeed, Filtermist Unit, Parts Conveyor, Swarf Conveyor. Available in stock Febuary 2026

MACHINE INFORMATION

Manufacturer

CMZ

Model

TX66Y2

Year

2017

Condition

(Used) Excellent

Serial Number

Control

Fanuc

Accessories

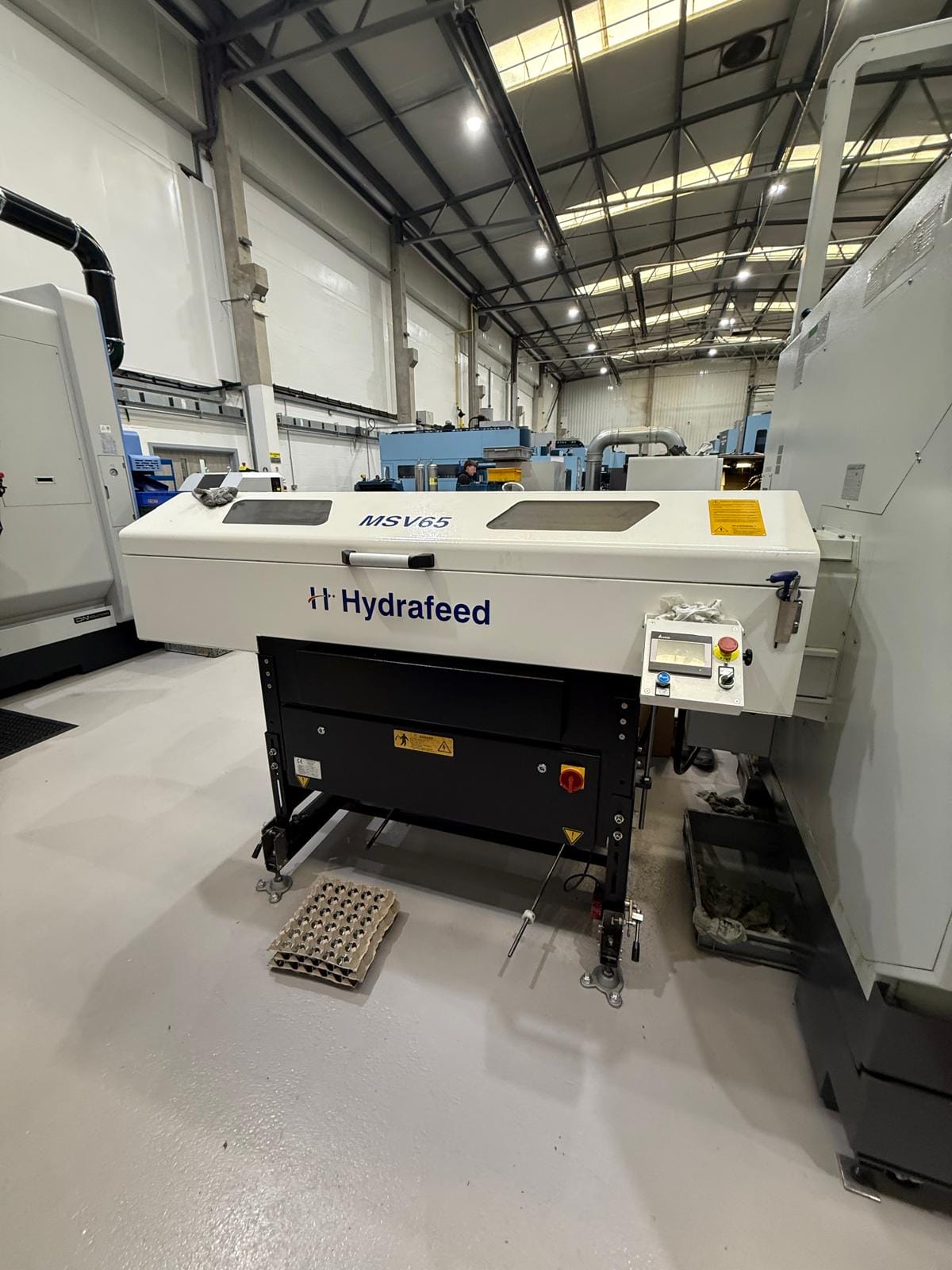

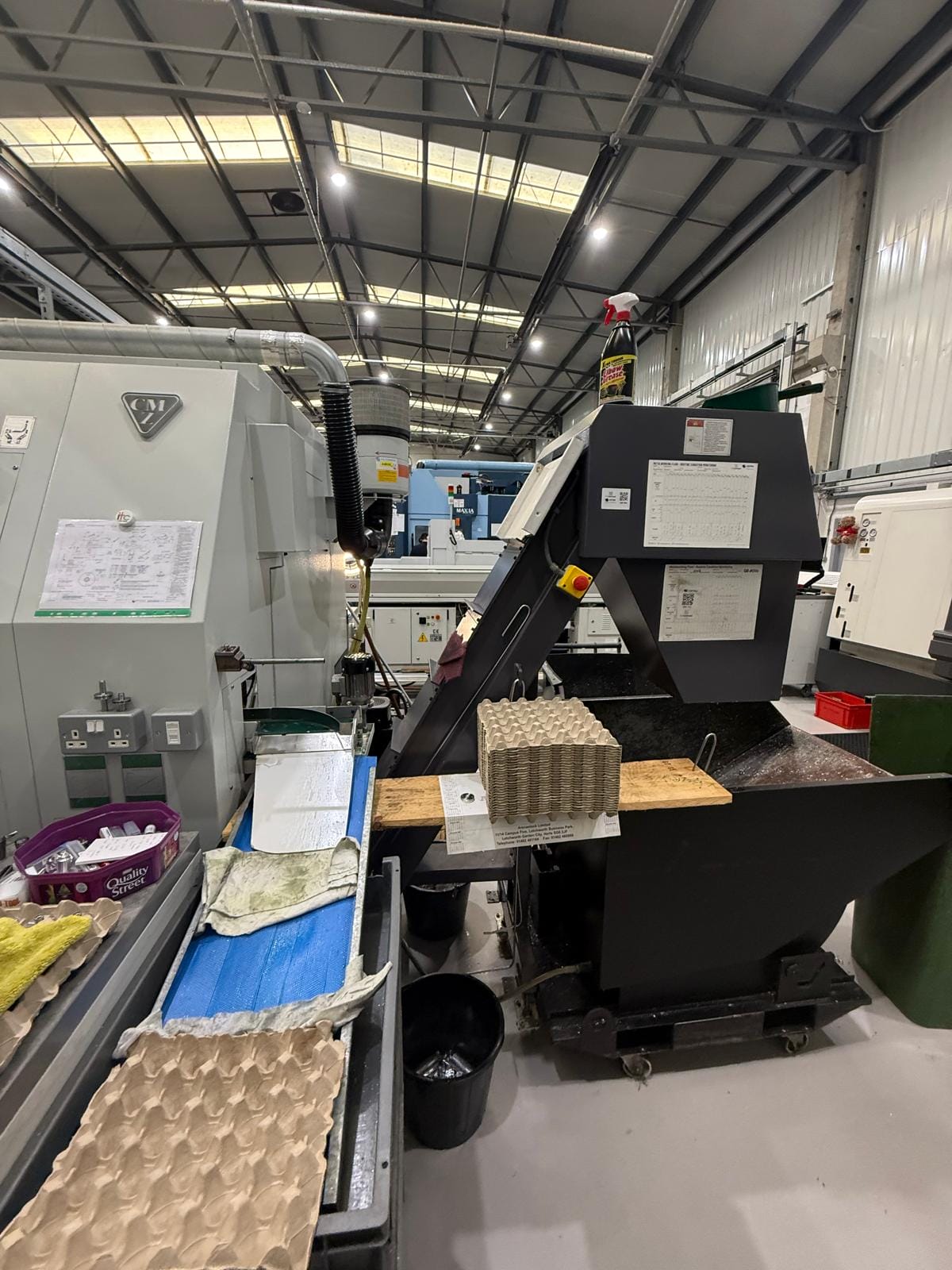

Live and static tool holders, Hydrafeed MSV65 Barfeed, Filtermist Unit, Parts Conveyor, Swarf Conveyor.

MACHINE SPECIFICATIONS

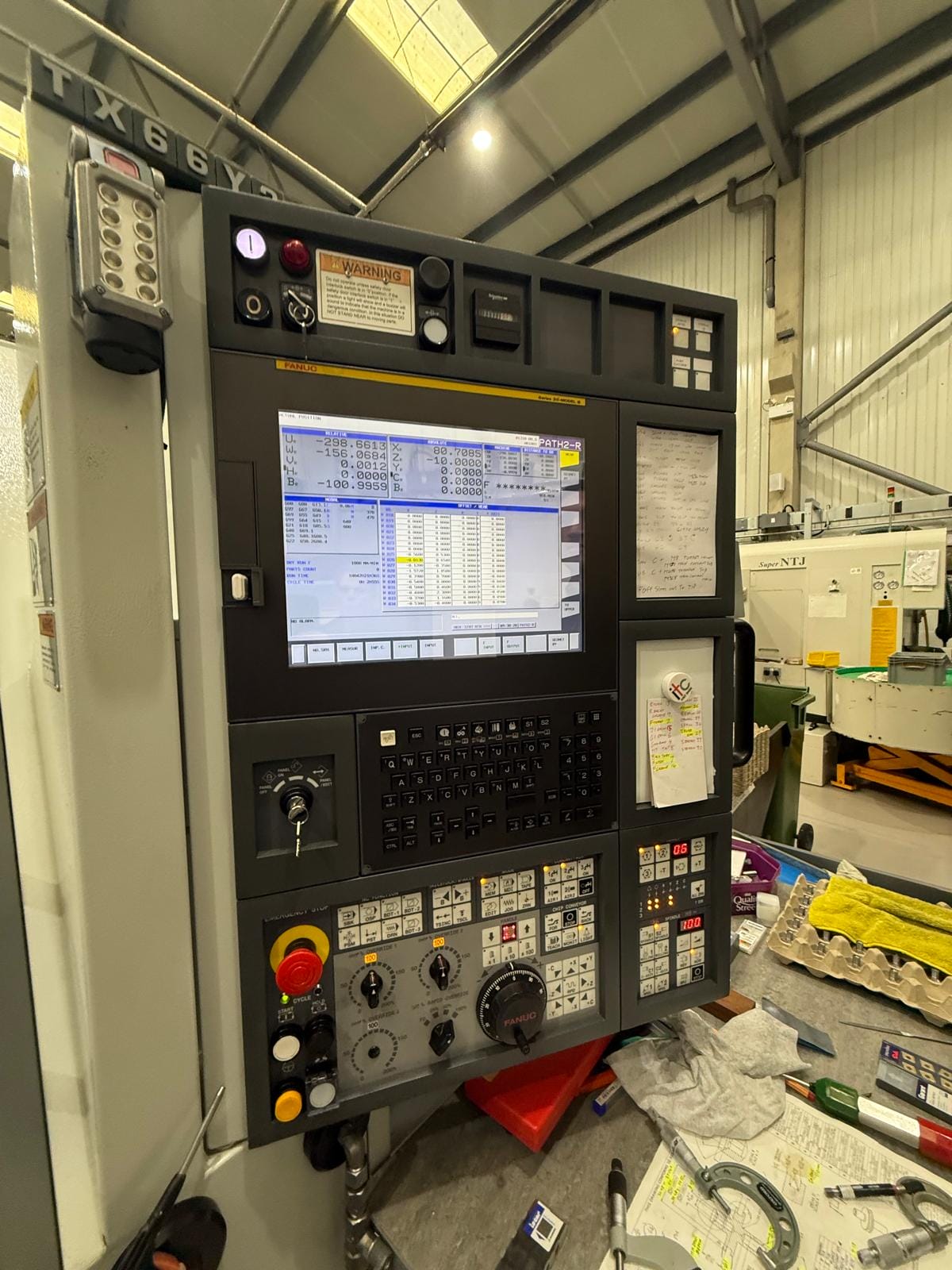

Control

FANUC 31i

Bar Capacity

66mm main spindle, sub spindle 52mm

Chuck Size

3 Jaw & Collet

Distance Between Centres

639mm

Max Cutting Diameter

255mm

Max Cutting Length

639mm

Spindle Speed

4,000 Main, 5,000 Sub RPM,

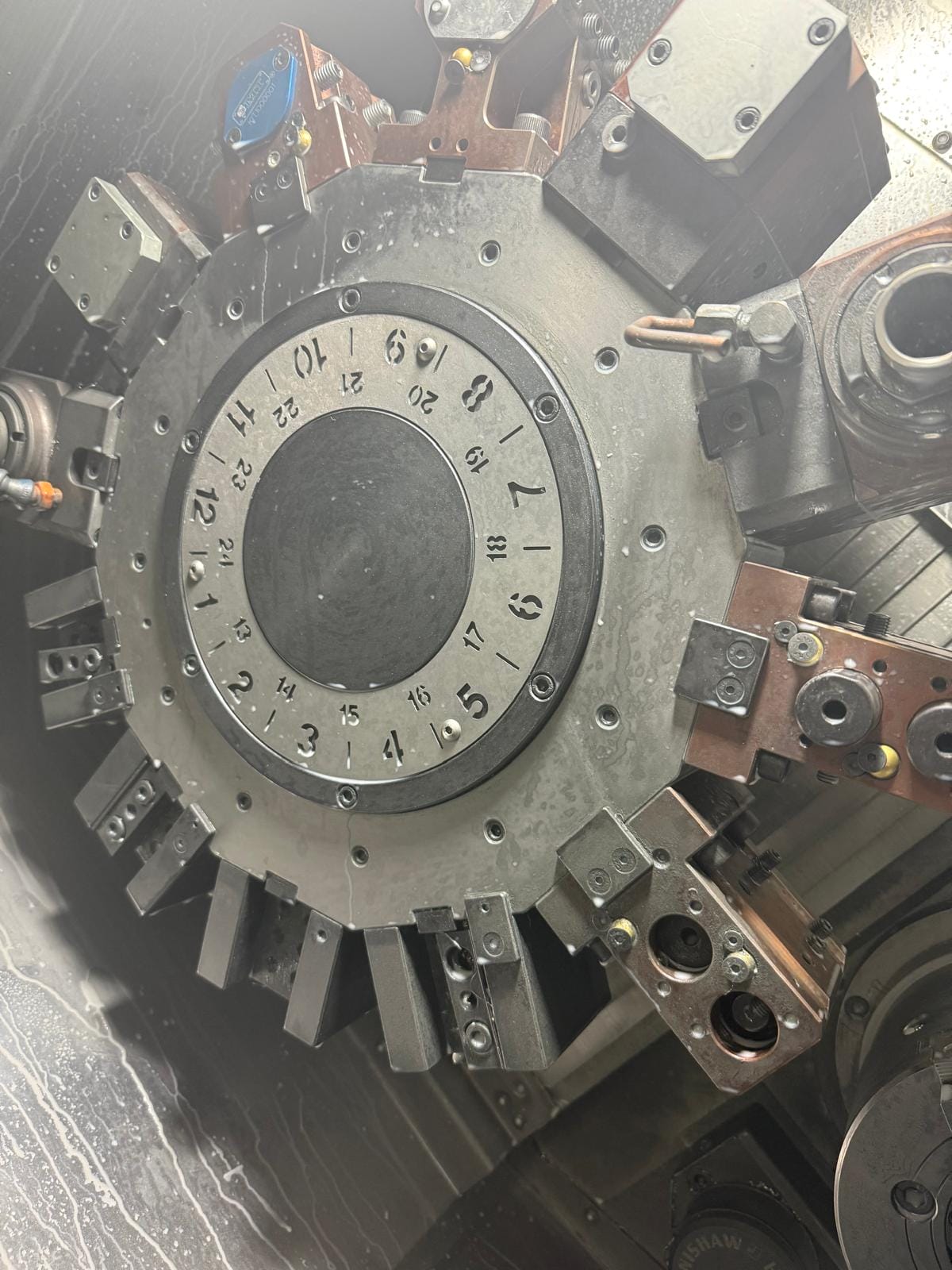

Turret Positions

12 Station each turret

Milling Speed

6,000rpm

Swing

270mm

X Axis Travel

Strokes Upper L Turret X Travel 190mm, Strokes Upper R X Travel 190mm

Y Axis Travel

Strokes Upper L Turret Y Travel +40mm, Strokes Upper R Y Travel +40mm

Z Axis Travel

Strokes Upper L Turret Z Travel 300mm, Stokes Upper R Z Travel 300mm

C Axis Travel

0.001 Degree
