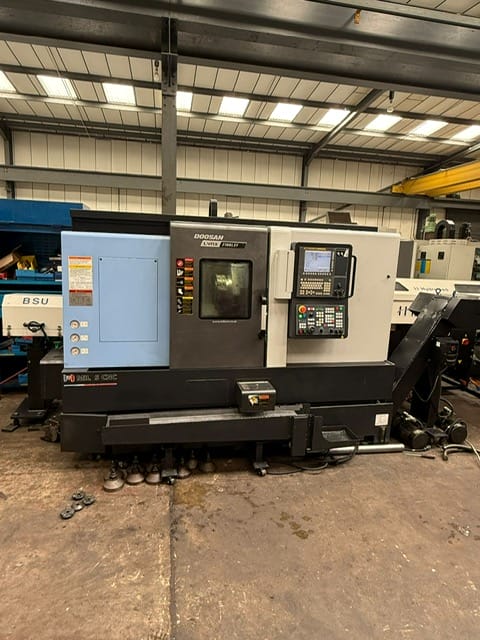

Doosan CNC turning center in workshop environment

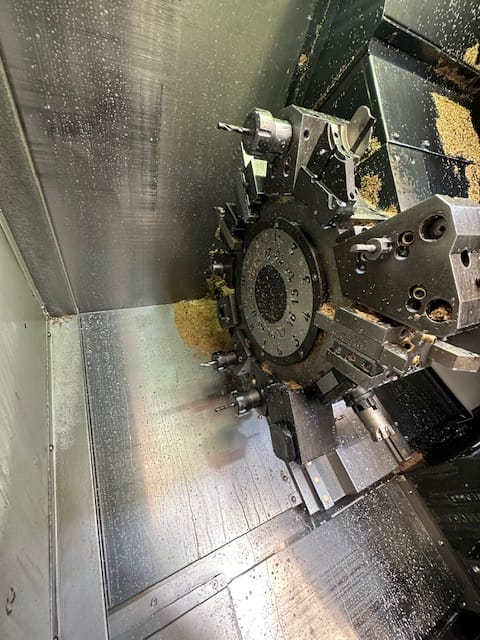

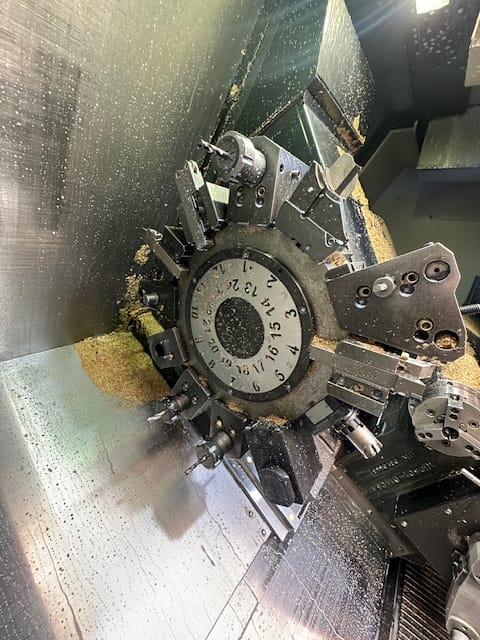

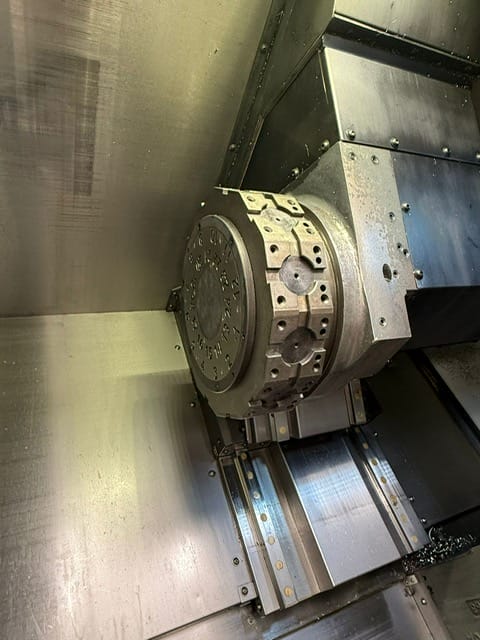

Turret and tooling stations inside CNC turning center

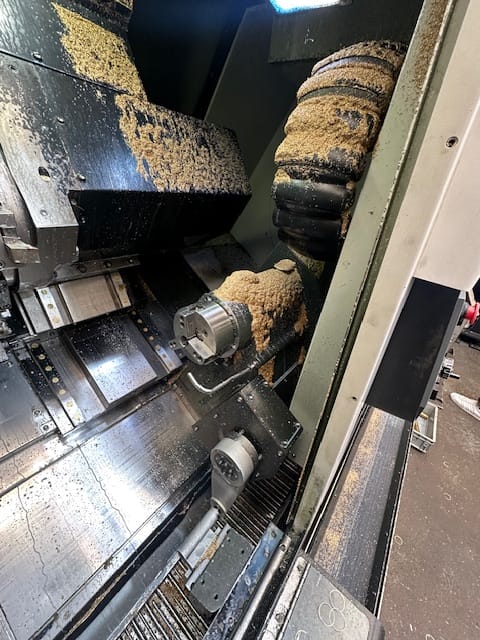

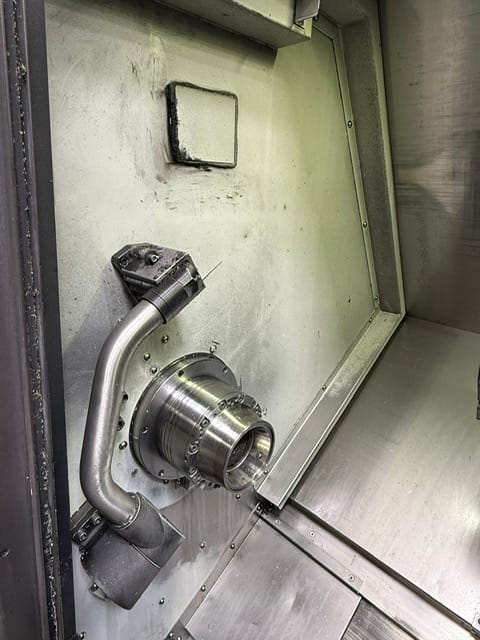

CNC chuck and spindle inside Doosan machine

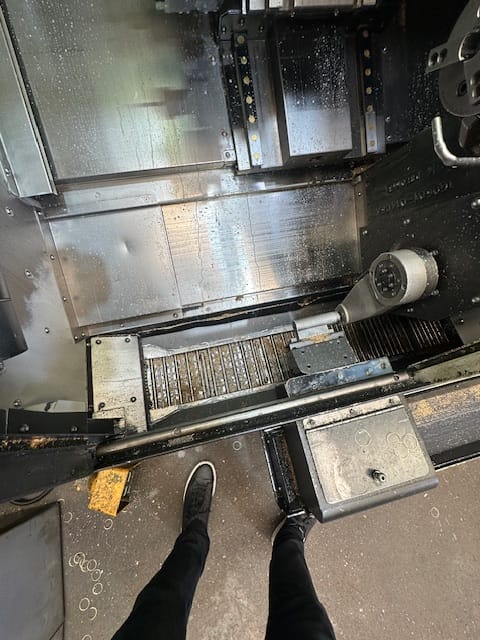

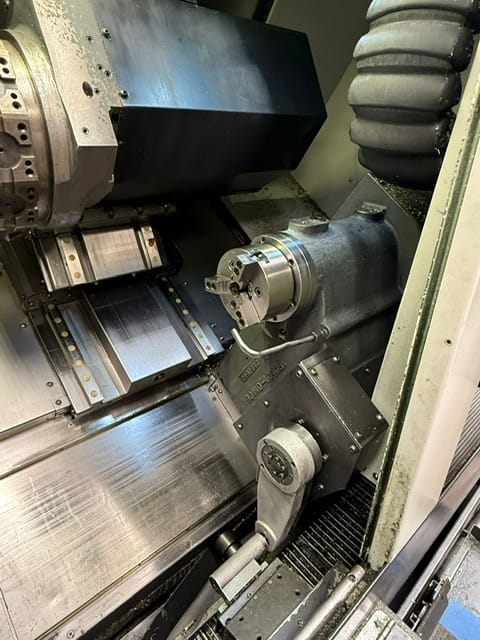

CNC lathe interior with chuck and tooling setup

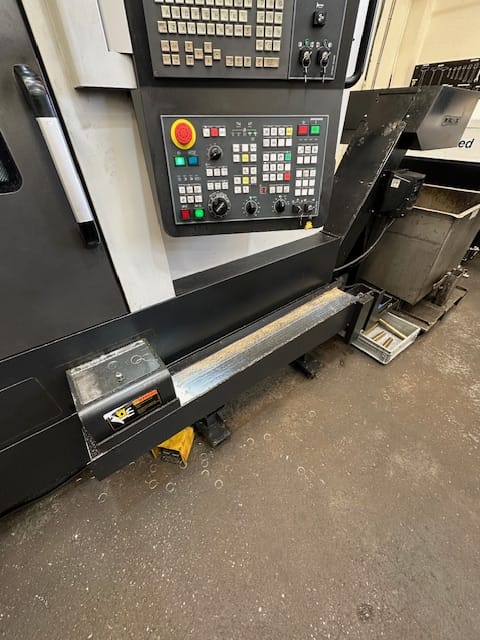

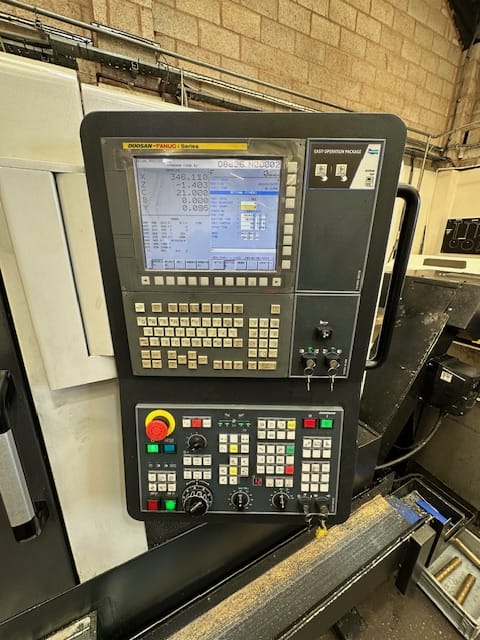

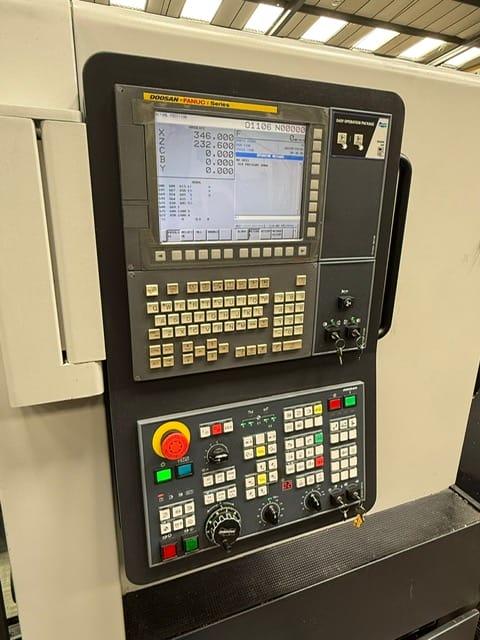

Doosan CNC control panel with screen and keypad

Side view of Hydrafeed bar feeder attachment

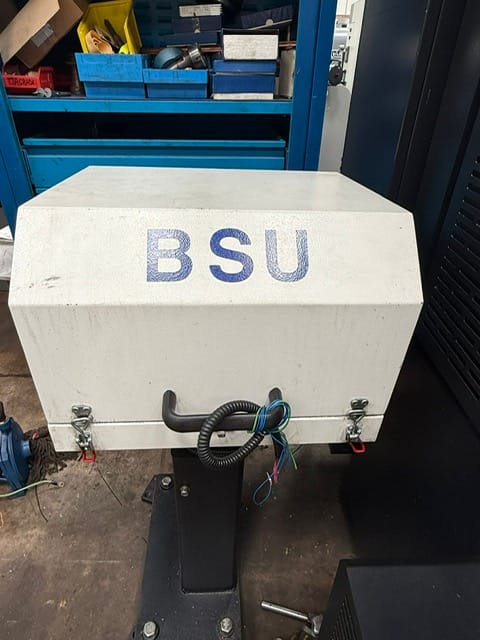

BSU bar feeder unit connected to CNC lathe

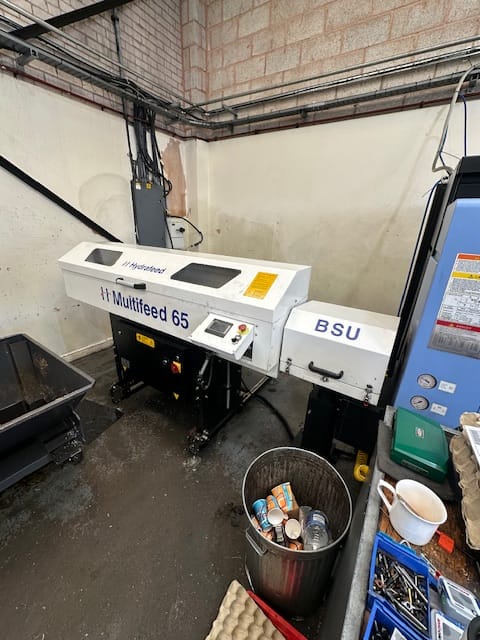

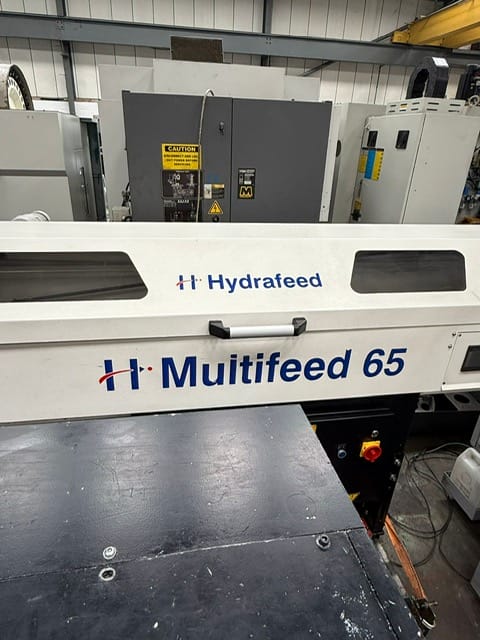

Hydrafeed Multifeed 65 bar feeder for CNC machine

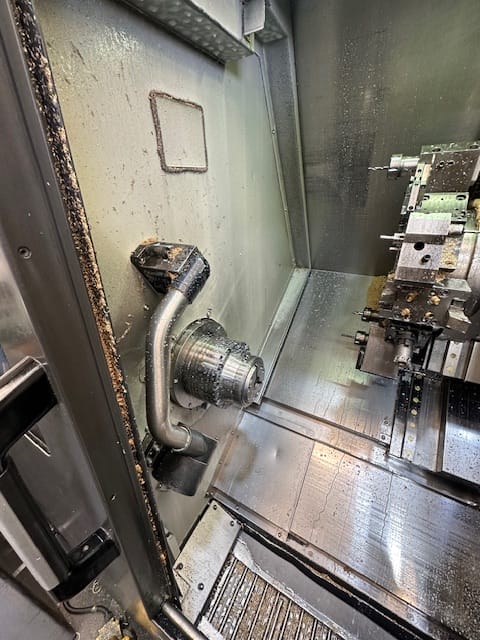

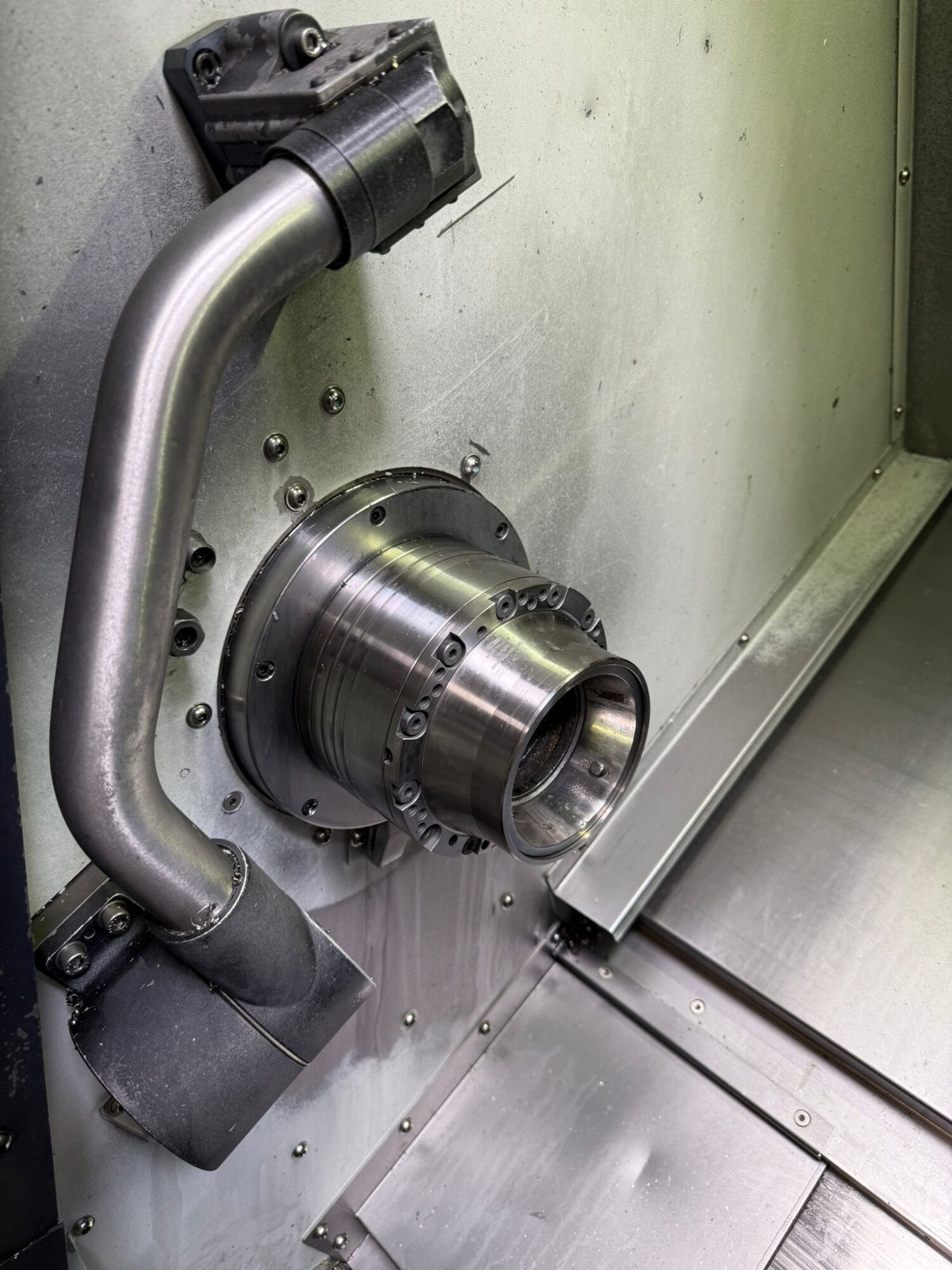

Close-up of CNC spindle chuck on Doosan lathe

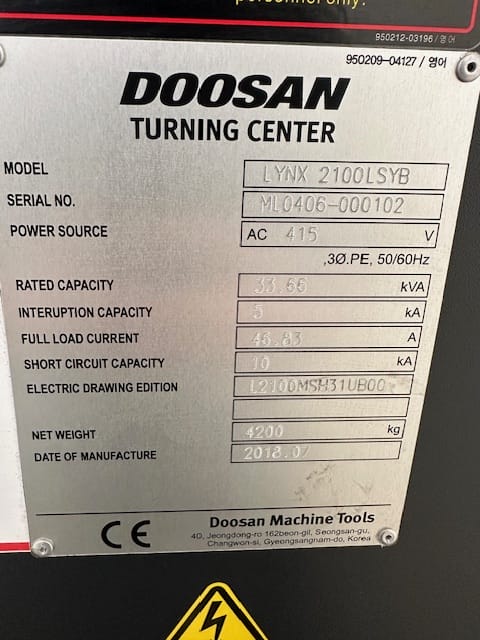

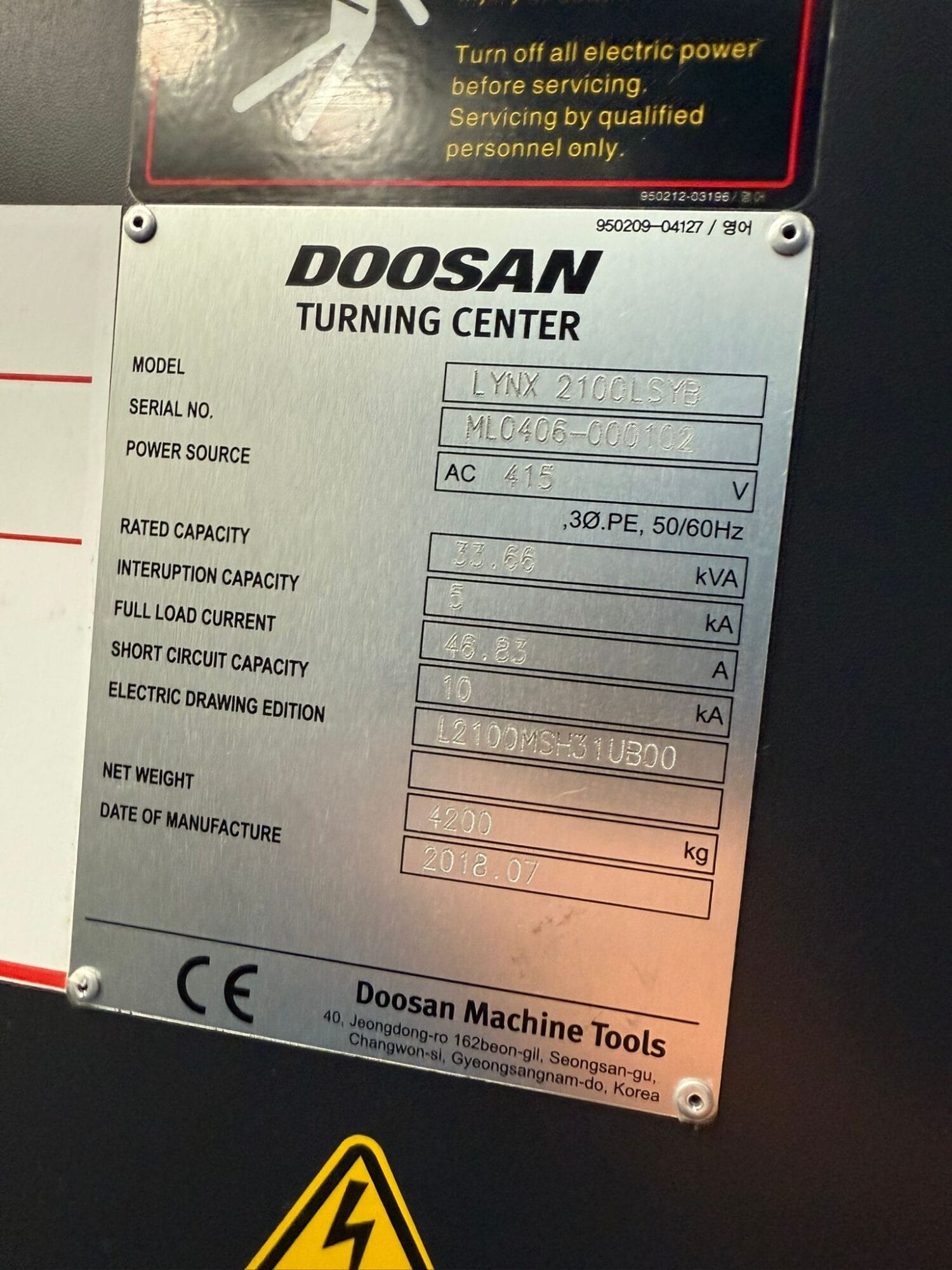

Doosan Puma turning center specification plate with technical details

Doosan Lynx 2100LSYB

DESCRIPTION

Used Doosan Lynx 2100LSYB CNC lathe in great condition. Hydrafeed barfeed, Live and static tool holders, swarf conveyor, parts conveyor, collet chuck.

MACHINE INFORMATION

Manufacturer

Doosan

Model

Lynx 2100SYB

Year

2018

Condition

(Used) Great

Serial Number

ML0406-000102

Control

Fanuc Control

Accessories

Hydrafeed barfeed, live and static tool holders, swarf conveyor, parts conveyor, collet chuck

MACHINE SPECIFICATIONS

Control

Fanuc Control

Bar Capacity

65mm

Chuck Size

8″ main spindle / 5″ sub spindle – collet chuck

Distance Between Centres

Max Cutting Diameter

300mm

Max Cutting Length

510mm

Spindle Speed

4,500rpm

Turret Positions

12 Station BMT-45P

Milling Speed

6,000rpm

Swing

600mm

X Axis Travel

205mm

Y Axis Travel

105mm

Z Axis Travel

560mm

C Axis Travel

0.001 degree
